USB socket "Slim"

USB socket with 2 connections with a slim size of 13.5 mm and a sleek appearance.

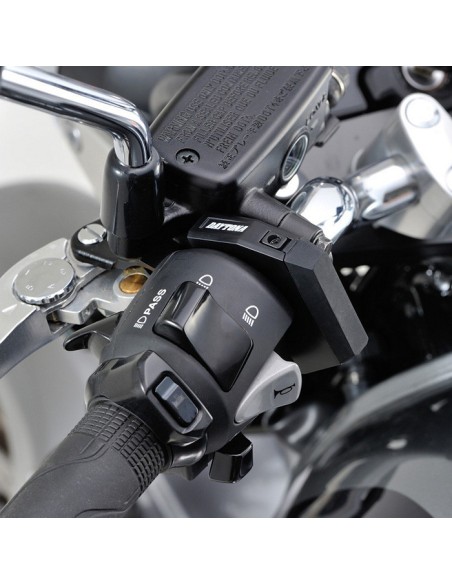

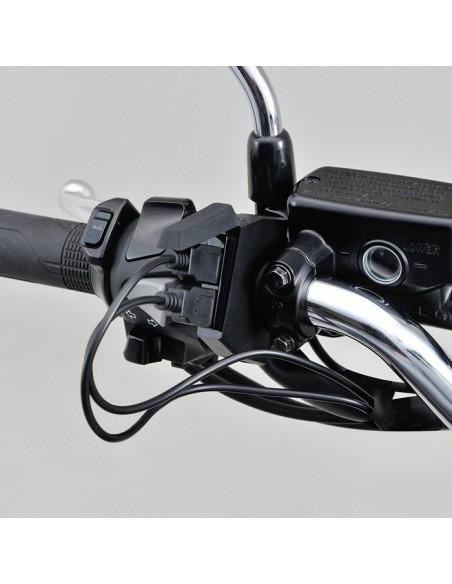

Suitable for handlebars with 22.2 and 25.4 mm.

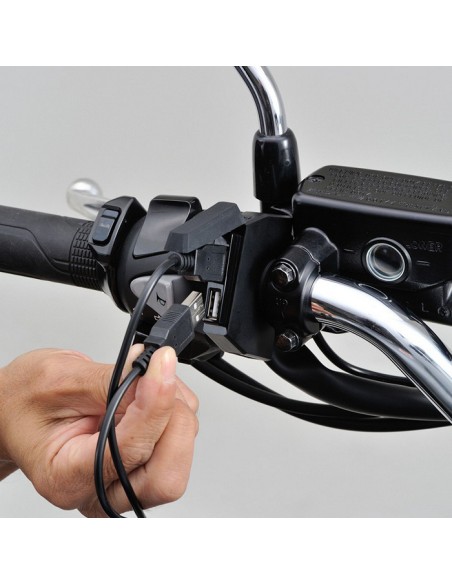

• USB 2 ports (max. 5V/4.8A).
• Input voltage: DC12V
• Input voltage range: DC10V-16V
• Stand-by current (without load): 6 mA
• Output voltage: 4.8-5.2 V
• Rated output current: 2.4A
• Rated power efficiency: 12W (1 port) / 24W (2 ports)

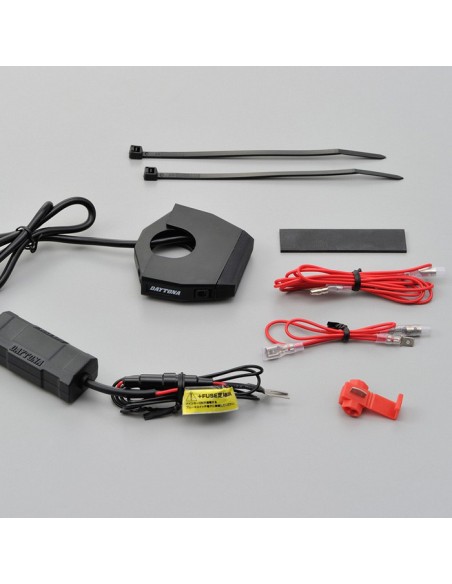

• Incl. integrated fine-wire fuse 250V / 3A .

This is a simple waterproofing for e.g. rain. Do not point a high-pressure cleaner or similar at the unit.
Standby power consumption is high due to the high output specification. To prevent draining the battery, please switch off the power supply when the vehicle is stopped, e.g. a connection with the master key or a separate switch.
